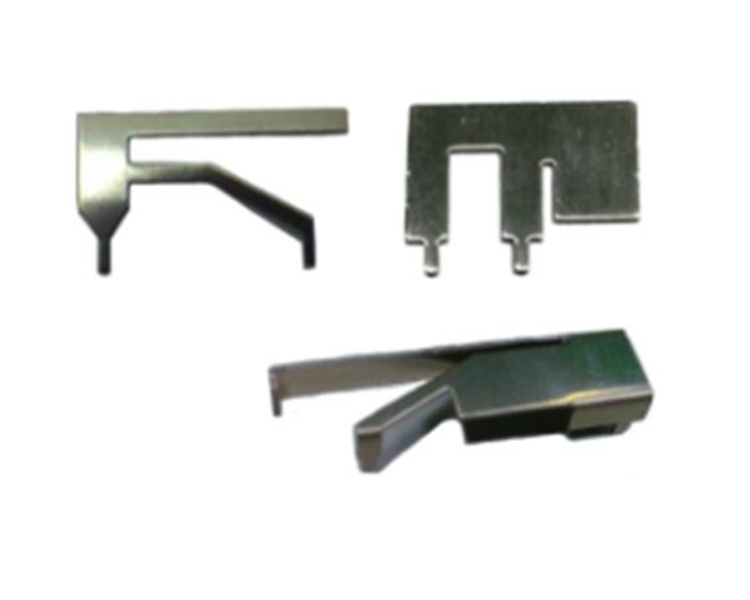

BTMA_Series_Metal Stamping Antenna catalog

Date:20191022
Supplier PN:华新科
Catalog:EXTERNAL TERMINAL MOUNT

INTRODUCTION

PNDescriptionDatesupplier PNoption 1option 2catalog
BTEA0050160G8R2A01External Antenna;   824~915&1725~1880MHz; RL=-2.5; Gain=2.56dBi; Linear vertical polarization20191022华新科CELLULARISM; IOT; CAT M1EXTERNAL TERMINAL   MOUNT
BTEA0087090G8R2A07External Antenna;   824~960&1710~2170MHz; RL=-4; Gain=-0.88&2.03dBi; Linear vertical   polarization20191022华新科CELLULARISM; IOT; CAT M1EXTERNAL TERMINAL   MOUNT
BTEA0087092G4R2B02External Antenna;   2.4~2.5GHz; RL=-10; Gain=2.54dBi; Linear vertical polarization20191022华新科WIFI;BLUETOOTH; NFC
EXTERNAL TERMINAL   MOUNT
BTEA00870925GR2A07External Antenna;   2.4~2.5&5.15~5.85GHz; RL=-10; Gain=2dBi; Linear vertical polarization20191022华新科WIFI;BLUETOOTH; NFC
EXTERNAL TERMINAL   MOUNT
BTEA0087095G0R2A03External Antenna;   5.15~5.85GHz; RL=-10; Gain=2.36dBi; Linear vertical polarization20191022华新科WIFI;BLUETOOTH; NFC
EXTERNAL TERMINAL   MOUNT
BTEA00151325GR2A07External Antenna;   2.4~2.5&5.15~5.85GHz; RL=-10; Gain=3±0.5dBi; Linear polarization20191022华新科WIFI;BLUETOOTH; NFC
EXTERNAL TERMINAL   MOUNT
BTEA0015132G4R2A08External Antenna;   2.4~2.5GHz; RL=-10; Gain=3±0.5dBi; Linear polarization20191022华新科WIFI;BLUETOOTH; NFC
EXTERNAL TERMINAL   MOUNT
BTE A00   15135G0R2A01External Antenna;   5.1~5.9GHz; RL=-10; Gain=3±1dBi; Linear polarization20191022华新科WIFI;BLUETOOTH; NFC
EXTERNAL TERMINAL   MOUNT
BTEA0017132G4R2A31External Antenna;   2.4~2.5GHz; RL=-10; Gain=4.93dBi; Linear vertical polarization20191022华新科WIFI;BLUETOOTH; NFC
EXTERNAL TERMINAL   MOUNT
BTEA00171325GR2A05External Antenna;   2.4~2.5&5.15~5.85GHz; RL=-10; Gain=5±1dBi; Linear vertical polarization20191022华新科WIFI;BLUETOOTH; NFC
EXTERNAL TERMINAL   MOUNT
BTEA0017135G0R2A07External Antenna;   5.15~5.85GHz; RL=-10; Gain=5±1dBi; Linear vertical polarization20191022华新科WIFI;BLUETOOTH; NFC
EXTERNAL TERMINAL   MOUNT
BTEA00271325GR2A03External Antenna;   2.4~2.5&5.15~5.85GHz; RL=-10; Gain=7±0.5dBi; Linear vertical polarization20191022华新科WIFI;BLUETOOTH; NFC
EXTERNAL TERMINAL   MOUNT
BTEA0027300G8R1A01External Antenna;   800~900&1800~1900&2100MHz; RL=-10; Linear vertical polarization20191022华新科CELLULARISM; IOT; CAT M1EXTERNAL TERMINAL   MOUNT
