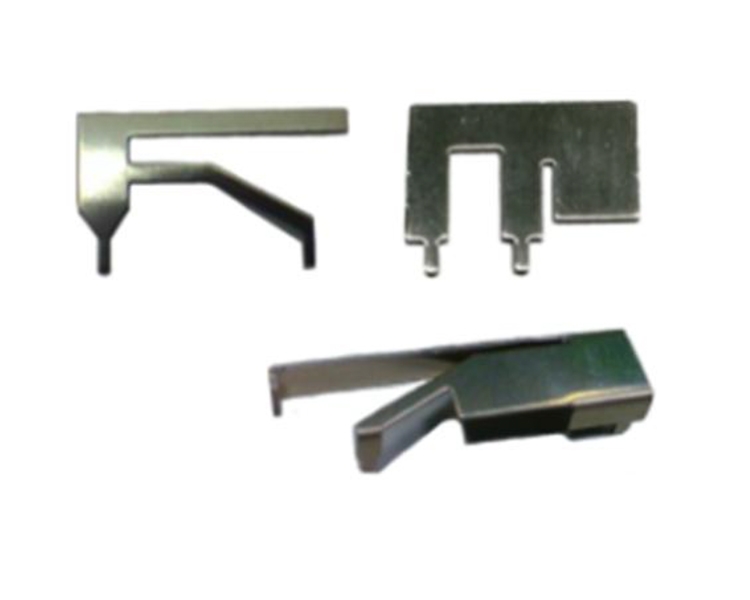

BTMA_Series_Metal Stamping Antenna catalog
Date:20191022
Supplier PN:华新科
Catalog:EXTERNAL TERMINAL MOUNT
INTRODUCTION
| PN | Description | Date | supplier PN | option 1 | option 2 | catalog |
| BTEA0050160G8R2A01 | External Antenna； 824~915&1725~1880MHz； RL=-2.5; Gain=2.56dBi; Linear vertical polarization | 20191022 | 华新科 | CELLULAR | ISM; IOT; CAT M1 | EXTERNAL TERMINAL MOUNT |
| BTEA0087090G8R2A07 | External Antenna； 824~960&1710~2170MHz； RL=-4; Gain=-0.88&2.03dBi; Linear vertical polarization | 20191022 | 华新科 | CELLULAR | ISM; IOT; CAT M1 | EXTERNAL TERMINAL MOUNT |
| BTEA0087092G4R2B02 | External Antenna； 2.4~2.5GHz； RL=-10; Gain=2.54dBi; Linear vertical polarization | 20191022 | 华新科 | WIFI;BLUETOOTH; NFC |
| EXTERNAL TERMINAL MOUNT |
| BTEA00870925GR2A07 | External Antenna； 2.4~2.5&5.15~5.85GHz； RL=-10; Gain=2dBi; Linear vertical polarization | 20191022 | 华新科 | WIFI;BLUETOOTH; NFC |
| EXTERNAL TERMINAL MOUNT |
| BTEA0087095G0R2A03 | External Antenna； 5.15~5.85GHz； RL=-10; Gain=2.36dBi; Linear vertical polarization | 20191022 | 华新科 | WIFI;BLUETOOTH; NFC |
| EXTERNAL TERMINAL MOUNT |
| BTEA00151325GR2A07 | External Antenna； 2.4~2.5&5.15~5.85GHz； RL=-10; Gain=3±0.5dBi; Linear polarization | 20191022 | 华新科 | WIFI;BLUETOOTH; NFC |
| EXTERNAL TERMINAL MOUNT |
| BTEA0015132G4R2A08 | External Antenna； 2.4~2.5GHz； RL=-10; Gain=3±0.5dBi; Linear polarization | 20191022 | 华新科 | WIFI;BLUETOOTH; NFC |
| EXTERNAL TERMINAL MOUNT |
| BTE A00 15135G0R2A01 | External Antenna； 5.1~5.9GHz； RL=-10; Gain=3±1dBi; Linear polarization | 20191022 | 华新科 | WIFI;BLUETOOTH; NFC |
| EXTERNAL TERMINAL MOUNT |
| BTEA0017132G4R2A31 | External Antenna； 2.4~2.5GHz； RL=-10; Gain=4.93dBi; Linear vertical polarization | 20191022 | 华新科 | WIFI;BLUETOOTH; NFC |
| EXTERNAL TERMINAL MOUNT |
| BTEA00171325GR2A05 | External Antenna； 2.4~2.5&5.15~5.85GHz； RL=-10; Gain=5±1dBi; Linear vertical polarization | 20191022 | 华新科 | WIFI;BLUETOOTH; NFC |
| EXTERNAL TERMINAL MOUNT |
| BTEA0017135G0R2A07 | External Antenna； 5.15~5.85GHz； RL=-10; Gain=5±1dBi; Linear vertical polarization | 20191022 | 华新科 | WIFI;BLUETOOTH; NFC |
| EXTERNAL TERMINAL MOUNT |
| BTEA00271325GR2A03 | External Antenna； 2.4~2.5&5.15~5.85GHz； RL=-10; Gain=7±0.5dBi; Linear vertical polarization | 20191022 | 华新科 | WIFI;BLUETOOTH; NFC |
| EXTERNAL TERMINAL MOUNT |
| BTEA0027300G8R1A01 | External Antenna； 800~900&1800~1900&2100MHz； RL=-10; Linear vertical polarization | 20191022 | 华新科 | CELLULAR | ISM; IOT; CAT M1 | EXTERNAL TERMINAL MOUNT |
